The ‘Advanced Page’ gives you access to many other settings of the MT 48- for example, you can use the I/O routing matrix to assign the inputs and outputs very easily. This is sometimes more convenient than making the settings directly via the MT 48 display, and also allows you to use advanced routing options that cannot be set directly on the MT 48.
There are different ways to open the "Advanced Page":
1. Go to the address field of the browser window. Here you see the IP address of your MT 48,
followed by, /MT48_music/index.html.
2. Delete everything behind the IP address and replace it with /advanced
Thus http://xxx.xxx.xxx.xxx/MT48_music/index.html
becomes http://xxx.xxx.xxx.xxx/advanced
3. Hit enter. This opens the MT 48 Advanced Page:

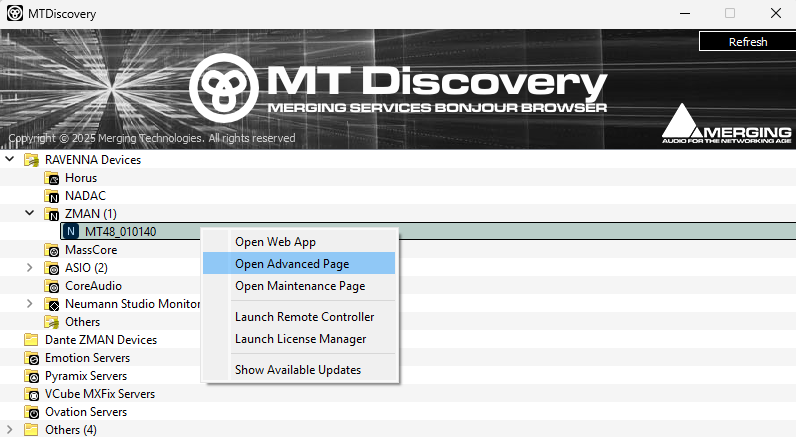

Or you can install "MT Discovery" which is available free of charge on the Neumann Website | Service & Downloads. Here you are able to choose the "Advanced Page" from the Menu.
When you open the "Advanced Page" you will see the Ravenna Console where you can configure mainly the AES67 network settings. However, other configurations that have nothing to do with the AES67 network environment can also be modified here.

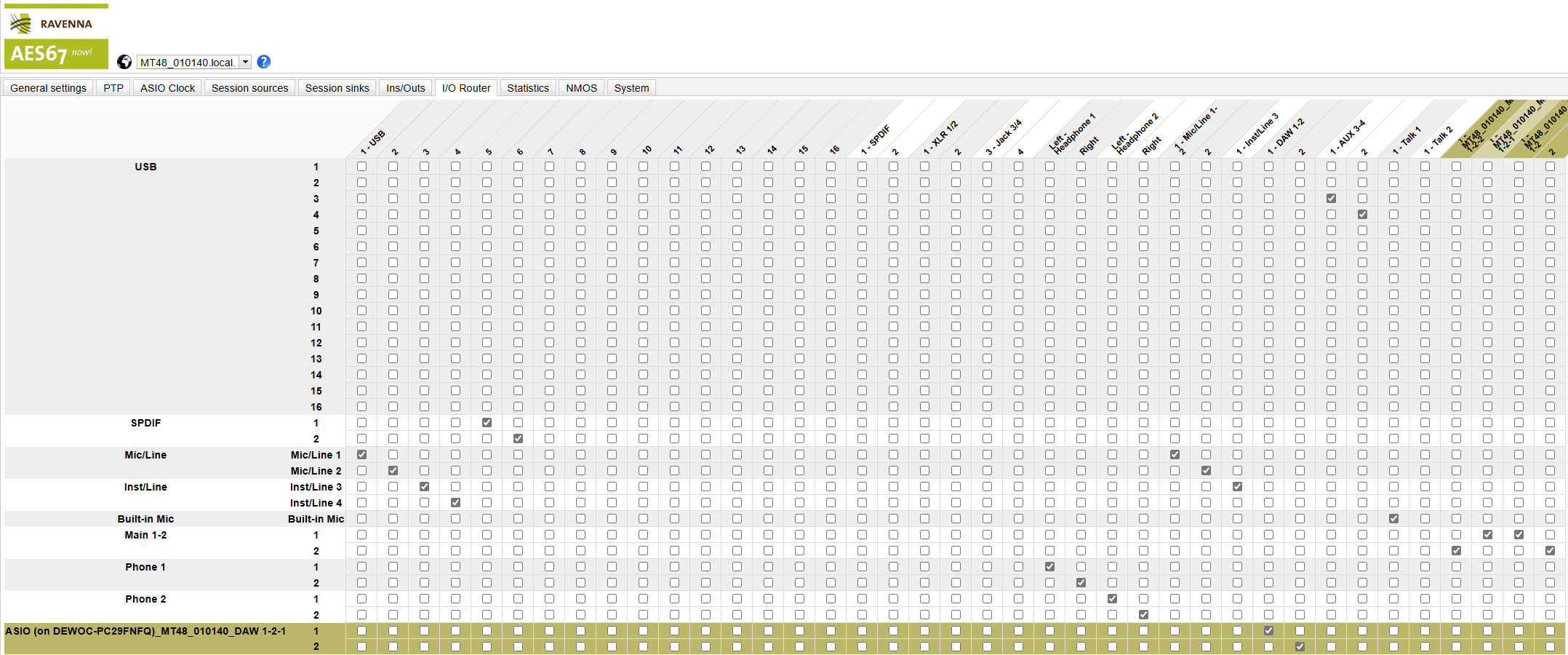

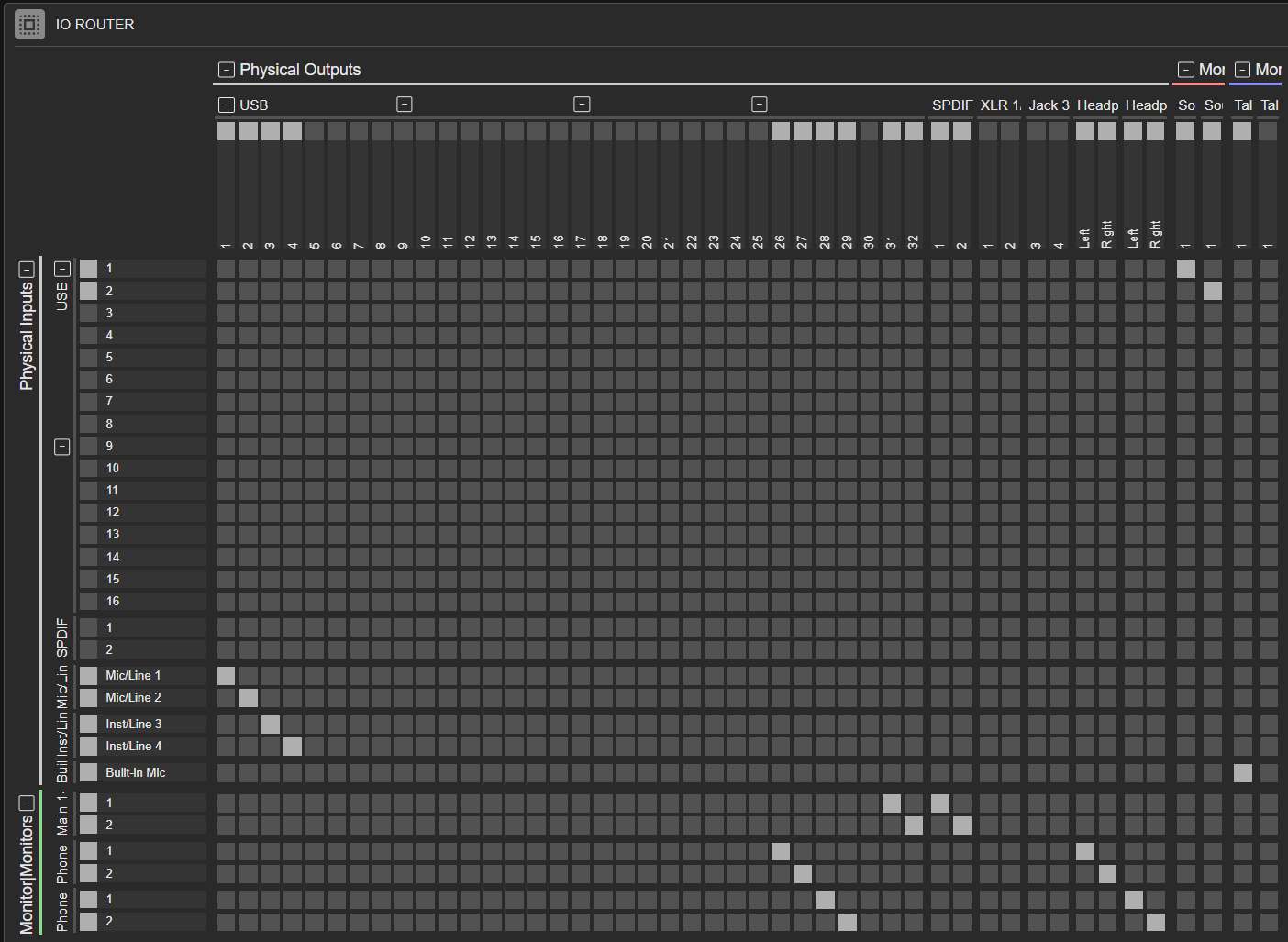

Open the "I/O Router" tab where you are able to configure Inputs and Outputs of your MT48.
