Anubis : How to create a new Source / Monitor

Updated

On this article, it is explain how to create a new Source or Monitor in the ANUBIS MONITOR MISSION



CREATE A NEW SOURCE

  1. On your Anubis device, long push the Merging logo, to access the Anubis Home page.

  2. Access the Settings page from that Home page

  3. Go in the Sources menu, then press on Create new source.

  4. Press on the new source that has been created

  5. Select a given name from the Anubis predefined Source names and a numeric/alphabetical tag.

  6. Most importantly choose your Speaker Set layout from the Type entry field listing.

You have now created a new Source

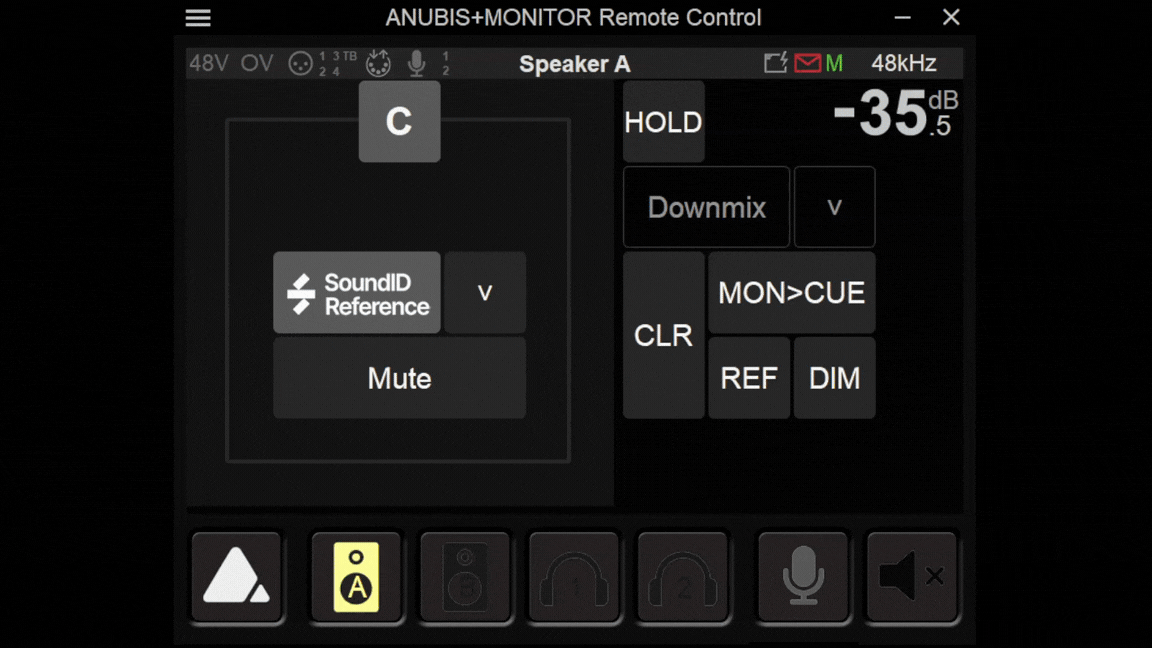

CREATE SOURCE ANUBIS.gif



CREATE A NEW MONITOR

  1. On your Anubis device, long push the Merging logo, to access the Anubis Home page.

  2. Access the Settings page from that Home page

  3. Go in the Monitors menu, then press on Create new monitor.

  4. Press on the new monitor that has been created

  5. Configure now your new monitor.
    Refer to Anubis User Manual for details on the different settings.


You have now created a new Monitor



CREATE MONITOR ANUBIS.gif
