| The RAVENNA / AES67 mode provides full control over your AoIP RAVENNA/AES67 streams connections, using ANEMAN Audio NEtwork MANager. Compared to Unite, the RAV/AES67 mode allows more complex setup, but implies creating the audio streams manually in the devices Advanced pages, or use ANEMAN. The RAV/AES67 mode can also use Unicast (from one source to one destination i.e. One-to-One) or Multicast (from one source to multiple destinations stating an interest in receiving the traffic i.e. One-to-Many) connections. Note : Limitation - the naming of the devices modules is only available in Unite mode. |
Prerequisites
Merging / Neumann RAVENNA/AES67 device (Merging Anubis, Hapi MKII, Hapi MKIII or Neumann MT 48)
Gigabit Ethernet network
(A Gigabit Ethernet adapter is required in order to connect to a USB A, B or C or Thunderbolt port).ANEMAN installed
Merging Audio Device (PC) - Virtual Audio Device driver installed (Mac).

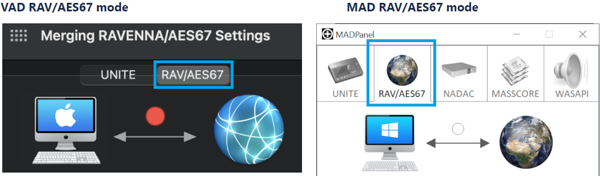

Switch to the RAV/AES67 Mode
Mac Users :
Open the VAD Preferences panel.
(VAD prior to 4.0: Browse to the MAC System Preferences, in Other open the Merging RAVENNA icon to open the driver panel)
PC Users :
Start the Merging Audio Device panel.Select the RAV/AES67 mode tab

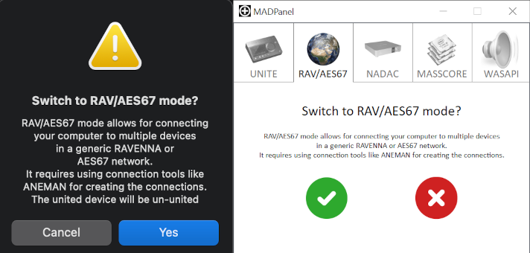

Confirm you want to switch to the RAV/AES67 mode.
Warning : when switching mode, the audio streams will stop and the inputs - outputs will be disconnected.Please configure the number of inputs and outputs required.
Mac Users :
Inputs and outputs values at the bottom of the Merging RAVENNA/AES67 Settings.
PC Users :
Inputs and outputs values in the Merging Audio Device panel > Advanced Settings.-
Click on the Launch Aneman button to open it and create the connections.
Follow the ANEMAN 2.0 Guide for details
