The Remote PreAmp control are available only with Merging & Neumann RAVENNA/AES67 Devices.
Pro Tools on Mac
MT 48 / Hapi / Anubis analog preamps can be controlled directly from within Avid Pro Tools running on a Mac. (using Virtual Audio Device Premium).
In order to set Pro Tools up for MT 48 / Hapi / Anubis preamp control follow this procedure:
Check the MT 48 / Hapi / Anubis firmware version and update if necessary, to the latest version.
Connect MT 48 / Hapi / Anubis to the system running Pro Tools through the Ethernet port.
Launch Pro Tools and configure to work with RAVENNA Core Audio I/O.

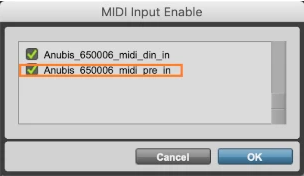

Open Pro Tools Setup>MIDI>Input Devices
Enable the Merging RAVENNA interface (MT 48, Hapi or Anubis)

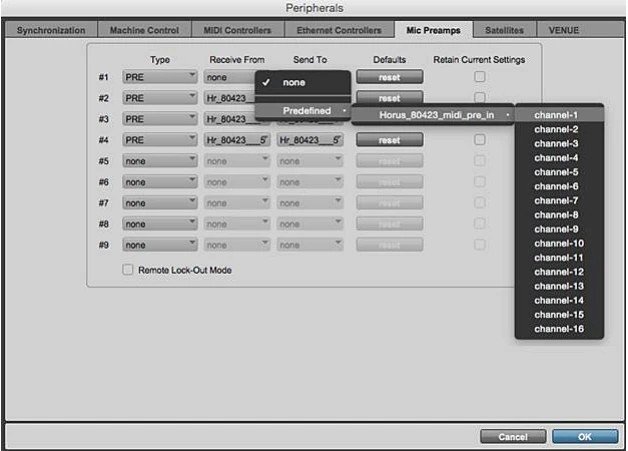

Open Pro Tools>Setup>Peripherals Settings.
In the Peripherals panel select the Mic Preamps tab.
Select in order:
Type: PRE
Receive From: Hapi_XXXX_midi_pre_in
Send To: Hapi_XXXX_midi_pre_out
Note:
For the first AD module Receive From > Channel 1 and Send To Channel 1 must be set (Anubis will be as of channel #9 with latest versions)
For the second AD module Receive From > Channel 2 and Send To Channel 2 must be set.
Warning: Hapi users must verify the order of their AD modules as the Channel numbering is based on slot position.
Anubis users will typically receive from Channel 1 to Channel 1.Click on OK to close the Peripherals panel.

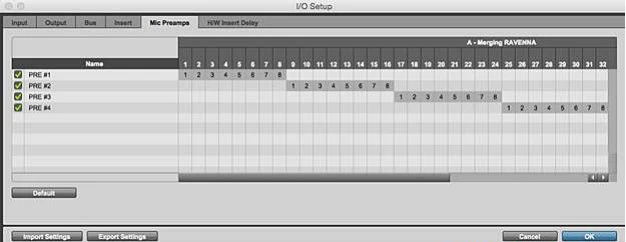

Open the Pro Tools I/O Setup panel
In the Mic Preamps tab enable PRE #1 etc. check the boxes to the left of the entries.
Click on OK to close the I/O Setup panel.
The MT48, Hapi and Anubis Preamp controls will be available within Pro Tools when the MT 48/ Hapi / Anubis Preamps are connected to the Pro Tools Mixer Strip Inputs.
