Ovation keyboard install guide

Updated



Windows Configuration

Please first disable the "Fast Startup" feature, which puts the computer to sleep when you press shutdown.
Sleep and hibernate are not supported by the keyboard.

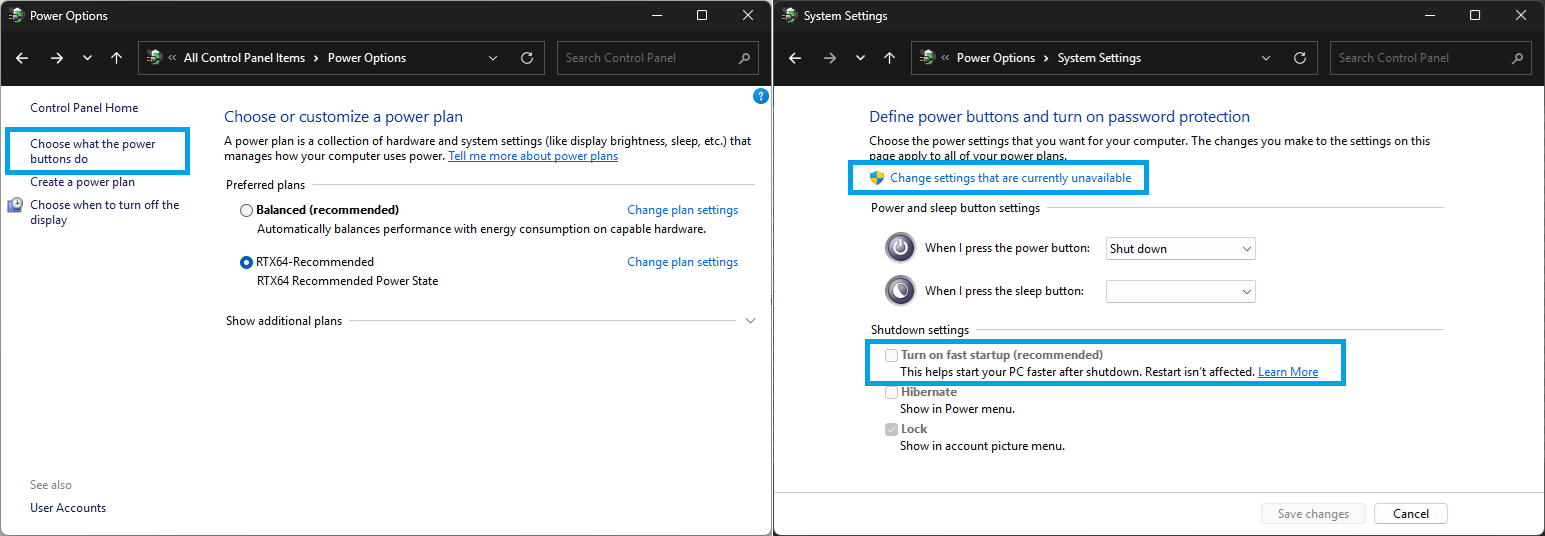

Go to Windows Control Panel > Power options
Click on "Choose what the power buttons do” on the left hand side of Power options page.
Then click on "Change Settings that are currently unavailable" and uncheck the "Turn on fast startup" option.  Click on Save Changes.


Installation on a new computer

  1. Download the Ovation and ADR keyboard installation pack
    Unzip in any convenient place.

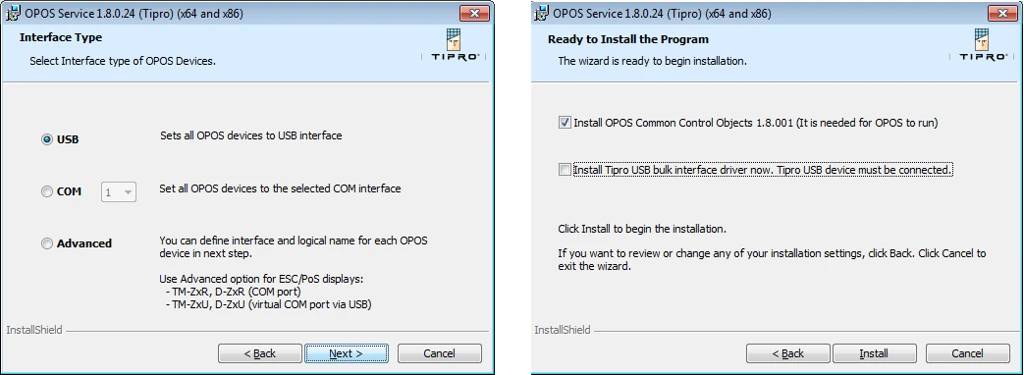

  2. Launch opos24_x64_x86.exe
    On Interface Type window, choose USB.
    Then select only Install OPOS Common Control Objects, disable Install Tipro USB Bulk Interface.
    The OPOS Common Control Objects dedicated installer will start, simply follow the instructions.

  3. Install Tipro ChangeMe version 5.25.8 (changeme5258.exe)
    If you have a Smartscreen message, simply click on More info, then select Run anyway.
    Restart the computer after the installation.

  4. Plug the USB keyboard.  Windows will install its driver

  5. Reboot your computer.

  6. Start ChangeMe Utility (Windows Start menu > Programs > Tipro keyboards)
    ChangeMe will scan your computer for the keyboard.

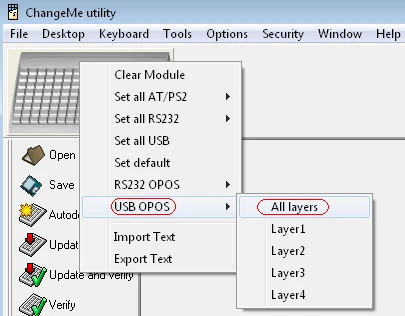

  7. Right click on the keyboard picture, then select USB OPOS>All layers

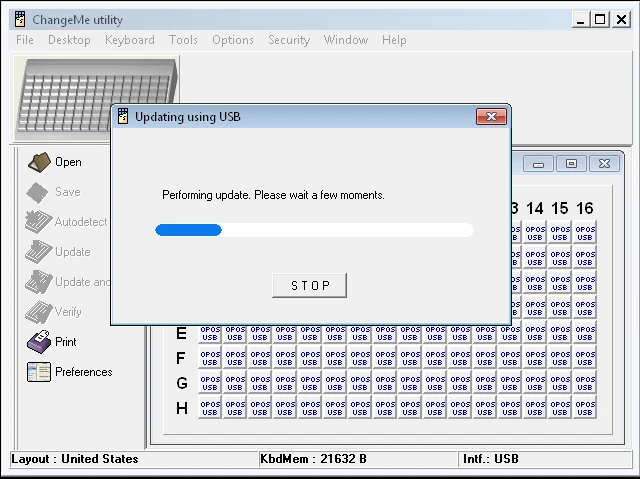

  8. Click on Update, this will set the keyboard into the correct mode.  See on the keyboard preview that all the keys are set to OPOS USB.

  9. After the keyboard is updated, simply exit ChangeMe.

  10. OVATION USERS: start Ovation.  You can choose between Multi-purpose or Hot Keys Only mode in Settings > Controller Units > Proprietary > OVKeyboard.
    PYRAMIX ADR USERS(legacy): double click on ADRKeyboardEnable.reg, to enable the ADR keyboard in the registry, then Start Pyramix.



Upgrade from a previous version

  1. Unplug the keyboard from the system.
  2. Go in Windows Control Panel – Programs & Features and uninstall your previous ChangeMe version.
    Restart the computer
  3. Download the Ovation and ADR keyboard installation pack
    Unzip in any convenient place.

  4. Install Tipro ChangeMe version 5.25.8 (changeme5258.exe)
    If you have a Smartscreen message, simply click on More info, then select Run anyway.
    Restart the computer after the installation.

  5. Plug the USB keyboard and Start ChangeMe Utility (Windows Start menu > Programs > Tipro keyboards).

  6. Go in Windows Device Manager.
    Depending on the version you had previously installed
    If the keyboard is detected under TiproPrg, as a “TUSBDrv64 Device”, go to next step.
    If the keyboard is detected under Tipro Keyboards, as a “Tipro Keyboard”
    Right click on it and select Uninstall then check the box Delete the driver software for this device.
    Restart the computer or unplug-replug the keyboard, it should then show as a TUSBDrv64 Device.
    You are now using the updated driver.

  7. Start ChangeMe Utility (Windows Start menu > Programs > Tipro keyboards)
    to verify that the keyboard is set in USB OPOS mode (see above)
