- Automatically launch Ovation application when Windows starts
- Show Configuration
- Computer configuration
- Shutdown a Merging/Neumann AES67/RAVENNA Device with a Cue
- Quit Ovation and shut down your computer with a Cue
Automatically launch Ovation application when Windows starts
Show Configuration
For your show to automatically open in Start Show mode, the Show Properties - Show Auto Start must be set to yes.
Ovation will automatically open the last opened show when it starts, be sure to quit Ovation with the required show open.
If you plan to fire Cues at a specific time of the day, the Show Properties - Show Time Mode has to be set to Time of the day (based on system clock)
Computer configuration
Download and extract the zip file on your C: drive, keeping the folder structure (Files will be in C:/OVAutostart)
If you extract on another location, you will have to modify the .bat files path.

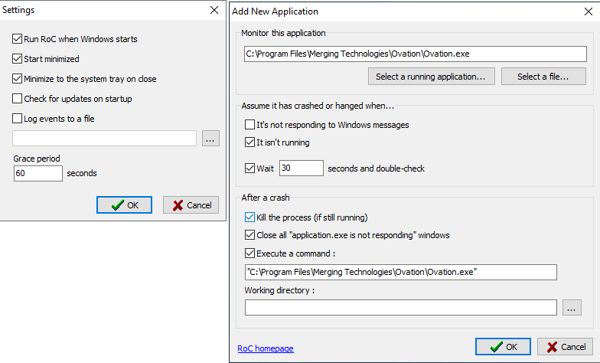

https://download.merging.com/beta/AssociatedTools/OVAutostart.zipStart RestartonCrash.exe and click on Settings to configure it :
Tick Run RoC when Windows starts - Start minimized - Minimize to the system tray on close
Untick Check for updates on startup
You may also log its activity into a file.
Click on OK to close the settings.Now click on Add
Click on Select a file, then browse to C:\Program Files\Merging Technologies\Ovation and select Ovation.exe
Untick It’s not responding to Windows messages
Tick It isn’t running and Wait and enter a value between 15 to 30 seconds (depends on the size of your show)When Windows will start, Ovation will be automatically started, and if for any reason Ovation crashes, it will be automatically restarted
Shutdown a Merging/Neumann AES67/RAVENNA Device with a Cue
Download and extract the zip file on your C: drive, keeping the folder structure (Files will be in C:/OVAutostart)
If you extract on another location, you will have to modify the .bat files path.
https://download.merging.com/beta/AssociatedTools/OVAutostart.zipPlease take note of your Merging/Neumann AES67/RAVENNA device IP address :
HAPI devices : Setup > Network menu
Anubis : Settings > General > Network.
To avoid IP addresses issue, setting a static IP address on the device is recommended.Go in C:/OVAutostart and edit the ShutdownDevice.bat file (with Notepad or Notepad++)
Enter your device IP address and save the file.
%windir%\System32\cmd.exe /c start shell:AppsFolder\Microsoft.MicrosoftEdge_8wekyb3d8bbwe!MicrosoftEdge -private http://169.254.147.242/commands/shutdown

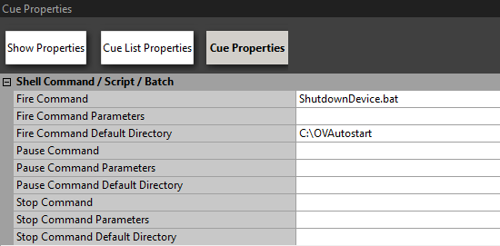

If you need to shut down several Merging RAVENNA devices, simply copy and paste this line, and set the required IP addresses.In Ovation, create a Cue and browse to the Shell Command / Script / Batch section.
In the required Command (Fire - Pause or Stop) field, enter ShutdownDevice.bat
In the corresponding Command Default Directory, enter C:/OVAutostart
Command Parameters should be empty.
You may also add the command to an existing cue.
If you want the shutdown to be performed at a specific time of the day, place this cue in a Timed Cue list and set its Go Time.
Remember also that the Show have to be set to Show Time Mode : Time of the day.Note : you may need Administrator rights to run such command, please consult your IT department in case of issue.
Quit Ovation and shut down your computer with a Cue
- Ovation popup messages have to be disabled, so the exit sequence can be performed without additional interaction.
Go in your Show properties and set Show Mode Confirmations, Saving Confirmations and Popups Confirmations to No. If you plan to fire Cues at a specific time of the day, the Show Properties - Show Time Mode has to be set to Time of the day (based on system clock)
Download and extract the zip file on your C: drive, keeping the folder structure (Files will be in C:/OVAutostart)
If you extract on another location, you will have to modify the .bat files path.

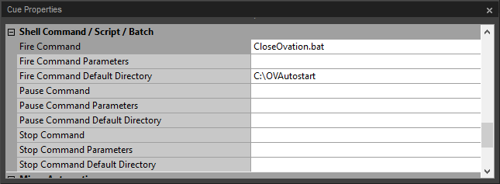

https://download.merging.com/beta/AssociatedTools/OVAutostart.zipIn Ovation, create a Cue and browse to the Shell Command / Script / Batch section.
In the required Command (Fire - Pause or Stop) field, enter CloseOvation.bat
In the corresponding Command Default Directory, enter C:/OVAutostart
Command Parameters should be empty.The script will Stop the Show and close Ovation, with some pauses to let the operations finish properly.
If you also want to restart the computer after Ovation quit, please use CloseOvationPCRestart.bat instead.
If you also want to shutdown the computer after Ovation quit, please use CloseOvationPCShutdown.bat instead.Note : you may need Administrator rights to run such command, please consult your IT department in case of issue.
Shutdown Ovation and your computer with a Cue (force quit)

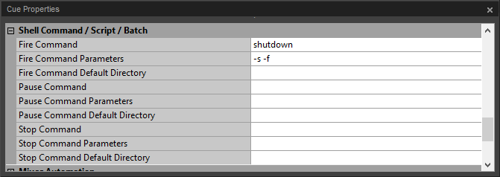

In Ovation, create a Cue and browse to the Shell Command / Script / Batch section.
In the required Command (Fire - Pause or Stop) field, enter shutdown
In the corresponding Command Parameters , enter -s -f
Command Default Directory should be empty.

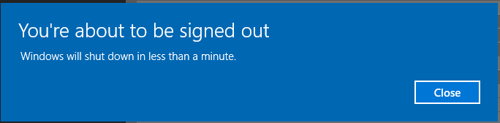

Windows will confirm that the computer will shut down (approximatively 30 seconds later).You may also add the command to an existing cue.
If you want the shutdown to be performed at a specific time of the day, place this cue in a Timed Cue list and set its Go Time.
Remember also that the Show have to be set to Show Time Mode : Time of the day.If you rather want to restart your computer, please enter the Command Parameters, enter -r -f
Note : this method forces Ovation to shut down, which may in some occasions introduce show reloading issue.
In such case, please use the method above.Note : you may need Administrator rights to run such command, please consult your IT department in case of issue.
