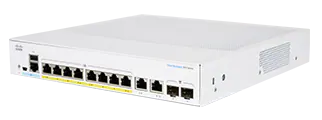

Cisco C1300-8 Auto-configuration (Cisco C1300-8 - Single VLAN/Cisco C1300-8 - Dual VLAN -> XML with no content)

MassCore Users - Important! If you have problems accessing the switch for configuration when connected to the Merging MassCore PCIe Ethernet card (NET-MSC-GBEX1) please connect it to the PC’s on-board Ethernet port. When configuration is completed reconnect the switch to the MassCore Ethernet card.

Note: For Cisco C1300 Switches other than the C1300-8T/P-E-2G/P-2G please use the manual configuration procedure.


Cisco C1300 Switch  Auto-configuration Procedure

1. Plug a network cable from the switch and to your computer.
   The switch will need to initialize, this will take a few minutes before being accessible.

2. Set your computer to use an IP in the 192.168.1.x address pool.

   • How to manually setup an IP address on Windows :

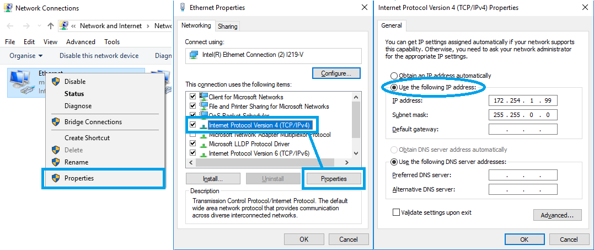

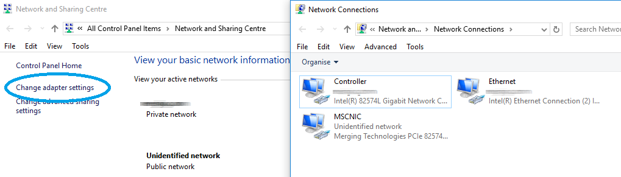

     Go in Windows Control Panel > Network and Sharing Center, then click on Change Adapter settings (left)Right click on the adapter that you have to configure and select Properties.
     Select the Internet Protocol Version 4 (TCP/IP), then click on the Properties button.
     Set it to "Use the following IP addresses", then enter the IP address.  It must be in the same range as the switch/network connected on it, for example : adapter IP is 192.168.1.50
     The Subnet mask is mandatory; Windows can set it automatically, simply click in the Subnet mask field.


   • How to manually setup an IP address on MacOs

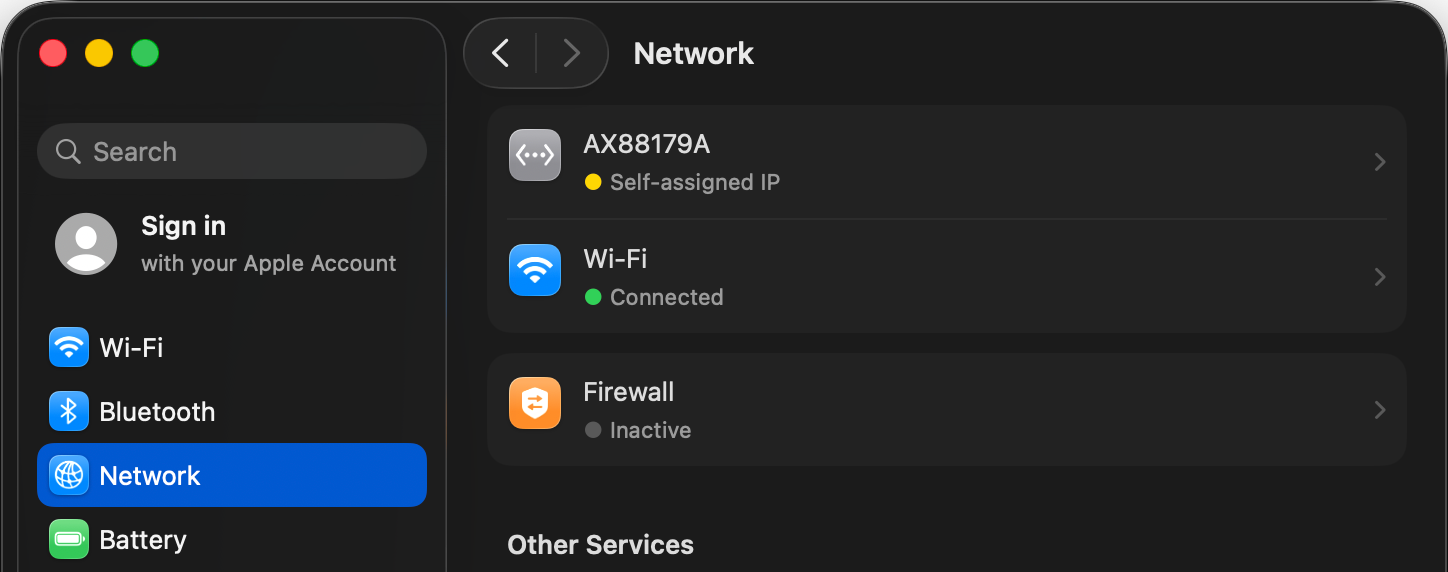

     Go in the System Preferences and select Network.

     Select the adapter that needs to be configured, and click on Details.

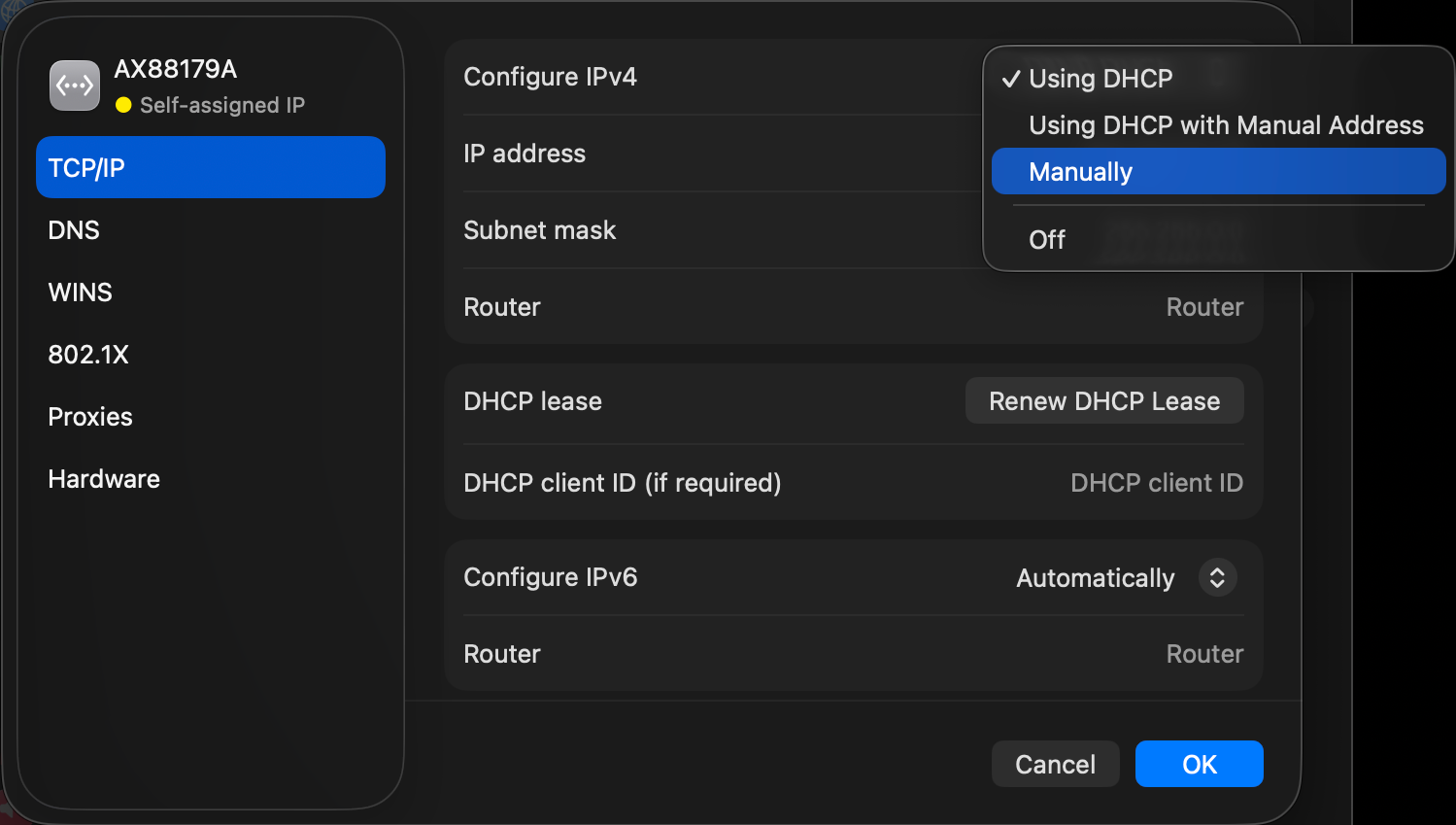

     Select TCP/IP and click on the arrow next to Configure IPv4.
     Select Manually in the drop down list, and enter the required IP address.
     It must be in the same range as the switch/network connected on it, for example : adapter IP is 192.168.1.50
     The Subnet mask is mandatory; MacOS can set it automatically, simply click in the Subnet mask field.

3. Open a web browser to navigate to http://192.168.1.254 (Cisco switches default IP address)

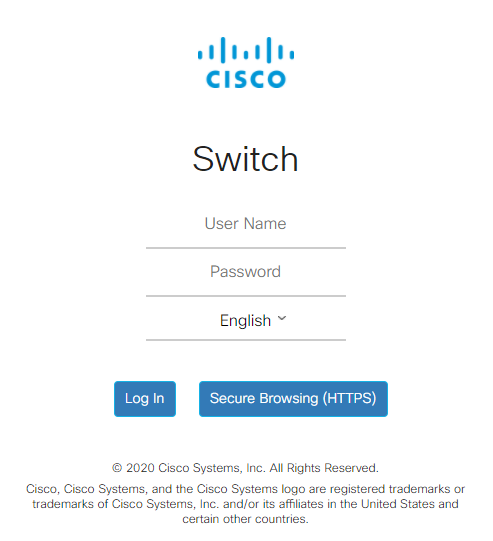

   You will be prompted to enter the user name and password to login.
   Default user name: cisco  Default password: cisco

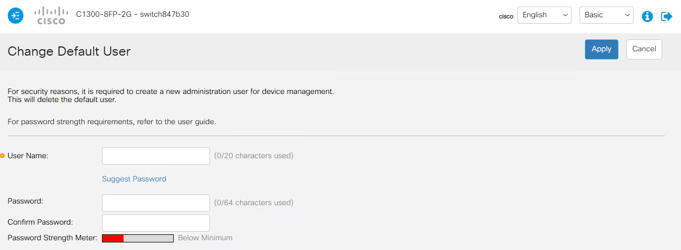

4. After the login prompt, you will be asked to set your own password.
   Please note the minimum character numbers and password complexity required.

5. For ease of use, please activate the side bar by clicking on the blue icon on the top left corner.

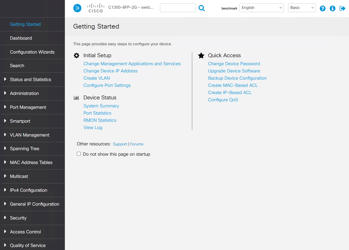

6. The Administration page will now load and you can start configuring your switch.


7. Download the latest configuration file for your Cisco CBS 350 switch model
   The RAVENNA configuration file will auto-configure various settings /protocols to optimize the RAVENNA / AES67 network, and also sets the definitive fixed IP address of the switch: 169.254.1.254

   Cisco C1300-8 - Single VLAN	All ports to RAVENNA/AES67
   Cisco C1300-8 - Dual VLAN	Port 1 to 4 and 9 : Regular network, Port 5 to 8 and 10 : Ravenna Network Note : After applying the Dual VLAN config file, the switch Administration pages will only be accessible on port 6 to 8 and 10.

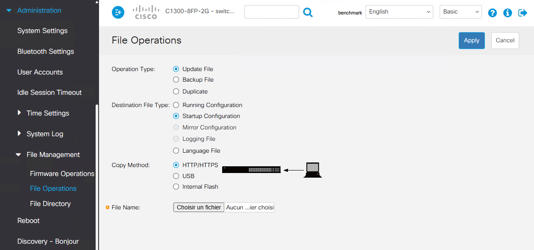

8. Go to Administration > File Management.
   Select File Operations.

9. Operation Type : Update File
   Destination File Type : Startup Configuration
   Copy Method : HTTP/HTTPS


10. Now click on Choose File and in the choose file window, browse to the configuration file you want to import.
    Select the configuration file and click on Open.

11. Back in the main window, click on Apply to load your configuration file into the Startup Configuration.

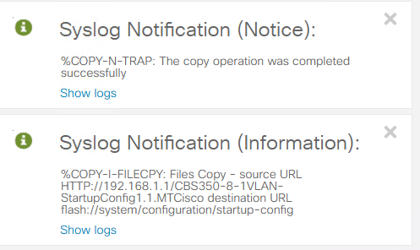

    Once imported, the switch will send a notification that the operation has been completed

12. You must now restart the switch for the changes to apply.

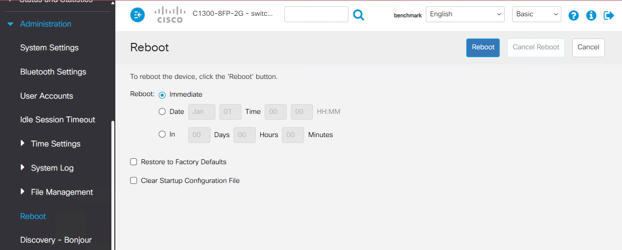

    Click Administration > Reboot
    Select Immediate and click on Reboot button.
    Note that the device might take some time to reboot


13. The switch will now change its IP address to 169.254.1.254, therefore the 192.168.1.254 page you are actually using will stop responding.
    To be able to access the switch now, please set your computer to use an IP in the 169.254.x.x address pool.
    Refer to the "How to manually setup an IP address" above, but this time, set your network adapter to automatically obtain an IP address (Windows) - Using DHCP (MacOS)

14. The switch is now configured and ready to use, and the Merging RAVENNA Network Card should have auto-configured itself with an IP in the 169.254.x.x range.

15. You will have to log in using the same default credentials as point 3, to then chose a new user login and password.

16. Please note that any changes requires you to click on Apply and that you then have to go in Administration > File Management > File Operations to properly save the changes (Duplicate from the Running Configuration to the Startup Configuration)
